This is the code in order to make DROP! work on Arduino uno. In order to interface to Max/Msp you will also need to add the max patch also available from the CODE page.

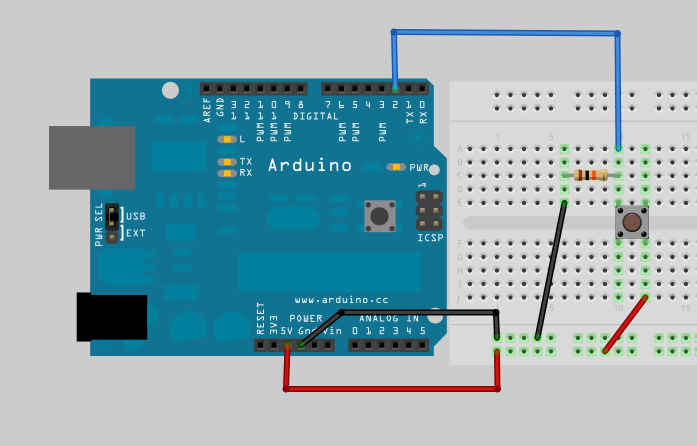

The board should be wired similar to this, but duplicated across pins 2-12.



Copy and paste everything below this line into the Arduino IDE.

________________________________________________

/*
Marble Run Prog v1 26/3/13

Reads inputs from digital pins 2-12. Setup requires 10k resistors
with one leg to ground the other leg to one digital pin per resistor.
A switch connects the digtal side of each resistor to the 5v pin.
Ouput is sent to the serial (usb) port ONLY when a switch is closed.
If a switch is closed a message ( pin2 if it is the pin two switch
which has been closed) will be sent to the serial output.

*/

// variables will change:
int pin2 = 0;  // variable for reading the pin status
int pin3 = 0;
int pin4 = 0;
int pin5 = 0;
int pin6 = 0;
int pin7 = 0;
int pin8 = 0;
int pin9 = 0;
int pin10 = 0;
int pin11 = 0;
int pin12 = 0;

void setup() {

// open serial usb connection
Serial.begin(9600);

// initialize the LED pin as an output:
pinMode(2, INPUT);
pinMode(3, INPUT);
pinMode(4, INPUT);
pinMode(5, INPUT);
pinMode(6, INPUT);
pinMode(7, INPUT);
pinMode(8, INPUT);
pinMode(9, INPUT);
pinMode(10, INPUT);
pinMode(11, INPUT);
pinMode(12, INPUT);
}

void loop(){
// read the state of the pushbutton value:
pin2 = digitalRead(2);
pin3 = digitalRead(3);
pin4 = digitalRead(4);
pin5 = digitalRead(5);
pin6 = digitalRead(6);
pin7 = digitalRead(7);
pin8 = digitalRead(8);
pin9 = digitalRead(9);
pin10 = digitalRead(10);
pin11 = digitalRead(11);
pin12 = digitalRead(12);

// check if the pin has connected if so print to usb.
if (pin2 == HIGH) {
Serial.println("pin2");
}
if (pin3 == HIGH) {
Serial.println("pin3");
}
if (pin4 == HIGH) {
Serial.println("pin4");
}
if (pin5 == HIGH) {
Serial.println("pin5");
}
if (pin6 == HIGH) {
Serial.println("pin6");
}
if (pin7 == HIGH) {
Serial.println("pin7");
}
if (pin8 == HIGH) {
Serial.println("pin8");
}
if (pin9 == HIGH) {
Serial.println("pin9");
}
if (pin10 == HIGH) {
Serial.println("pin10");
}
if (pin11 == HIGH) {
Serial.println("pin11");
}
if (pin12 == HIGH) {
Serial.println("pin12");
}

}
